MDJY Series Rice Length Grader
time：2017-05-08 11:58:46

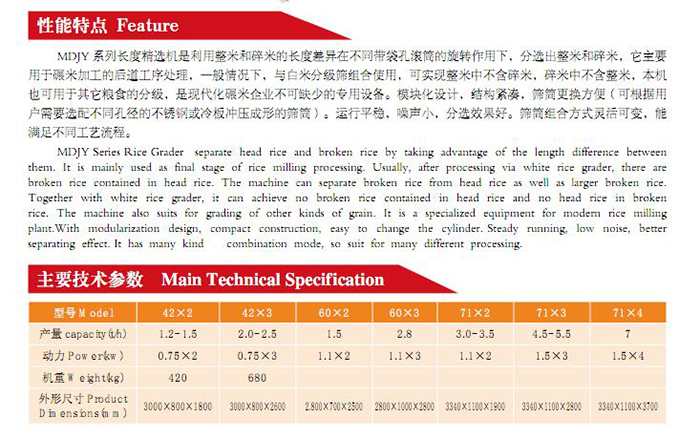

Feature ：
MDJY Series Rice Grader separate head rice and broken rice by taking advantage of the length difference betweenthem. It is mainly used as final stage of rice milling processing. Usually, after processing via white rice grader, there arebroken rice contained in head rice. The machine can separate broken rice from head rice as well as larger broken rice.Together with white rice grader, it can achieve no broken rice contained in head rice and no head rice in brokenrice. The machine also suits for grading of other kinds of grain. It is a specialized equipment for modern rice millingplant.With modularization design, compact construction, easy to change the cylinder. Steady running, low noise, betterseparating effect. It has many kind of combination mode, so suit for many different processing.
Main Technical Specification：
| Model | 42×2 | 42×3 | 60×2 | 60×3 | 71×2 | 71×3 | 71×4 |
|---|---|---|---|---|---|---|---|
| capacity(t/h) | 1.2-1.5 | 2.0-2.5 | 1.5 | 2.8 | 3.0-3.5 | 4.5-5.5 | 7 |
| Power(kw) | 0.75×2 | 0.75×3 | 1.1×2 | 1.1×3 | 1.1×2 | 1.5×3 | 1.5×4 |
| Weight(kg) | 420 | 680 | |||||
| Product Dimensions(mm) | 3000×800×1800 | 3000×800×2600 | 2.800×700×2500 | 2800×1000×2800 | 3340×1100×1900 | 3340×1100×2800 | 3340×1100×3700 |
